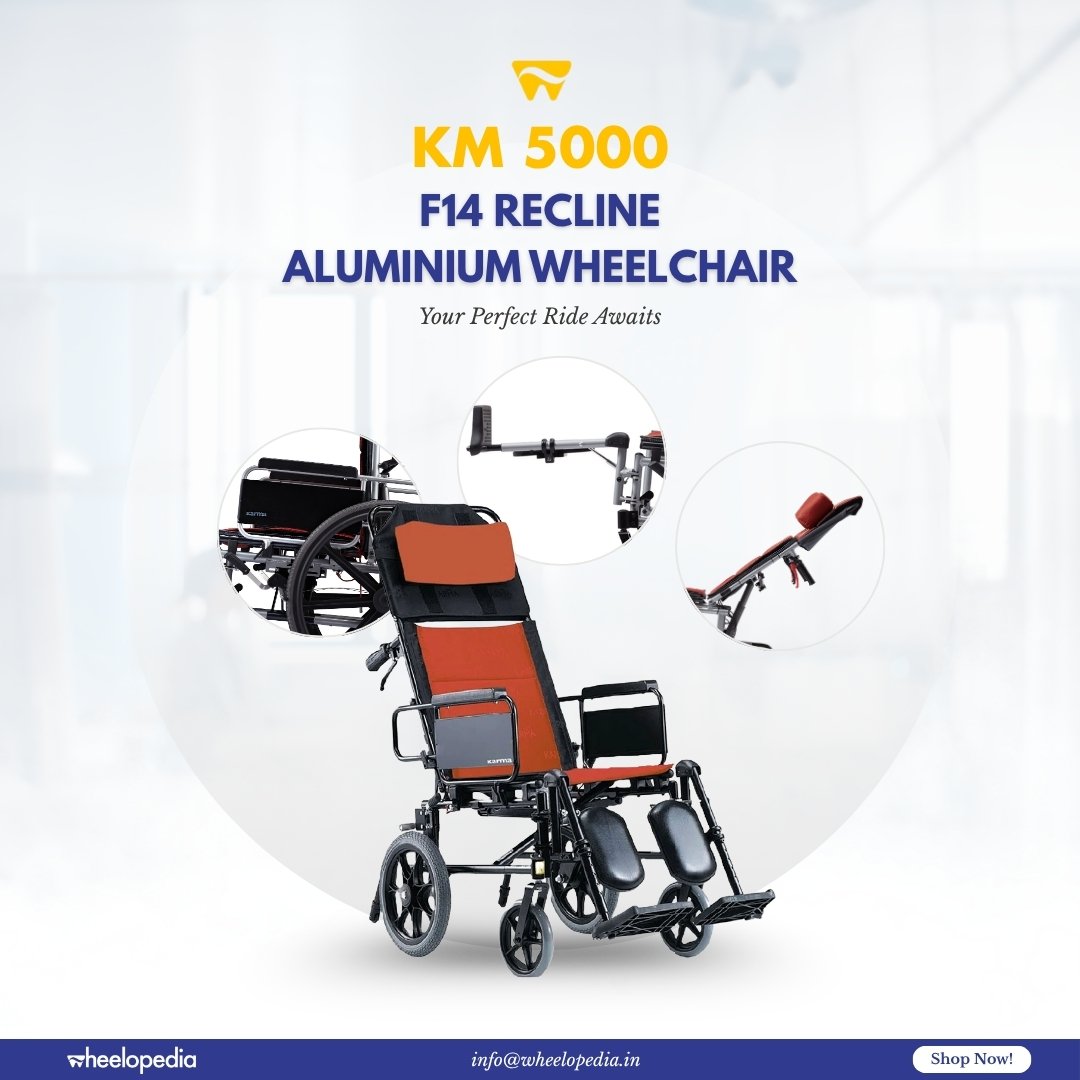

-58%The KM-5000 is a standard version of the recline series, especially designed for long-term users and stroke patients. Its full detachable armrests and elevating leg rest offer great convenience for transferring. The ergonomic headrest and adjustable backrest allow users to sit and lie down comfortably.

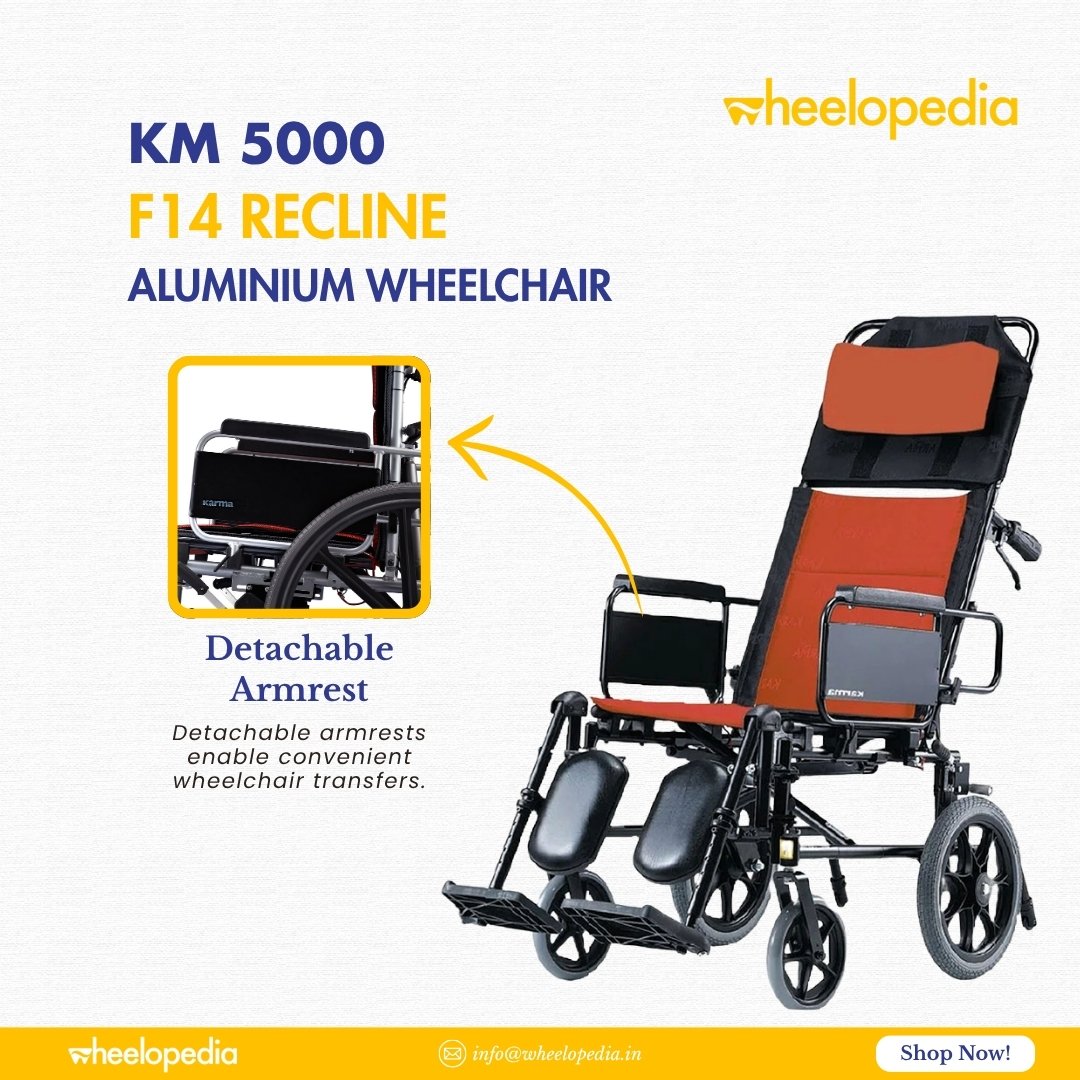

Full detachable armrests offer
great convenience to transfer
from the wheelchair.

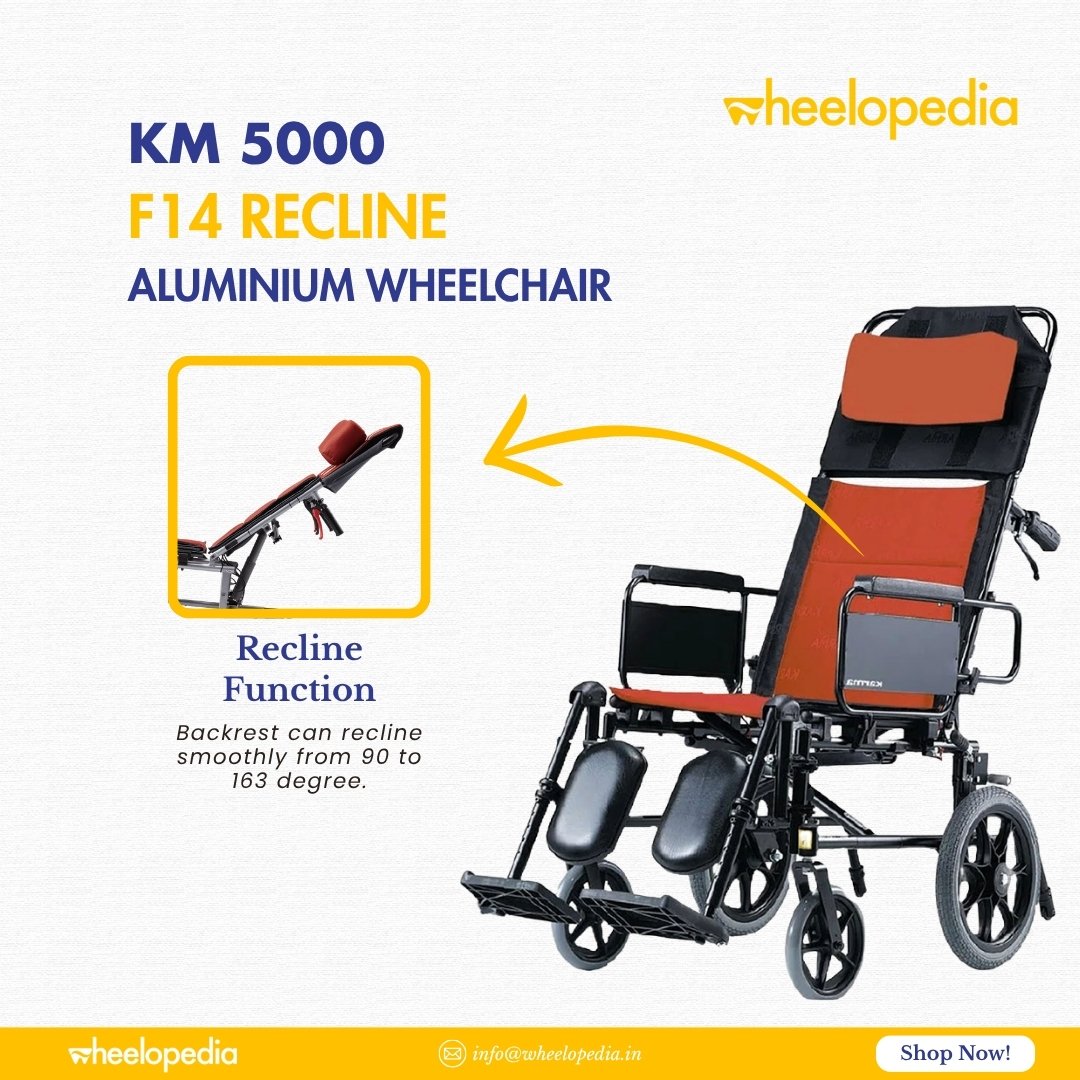

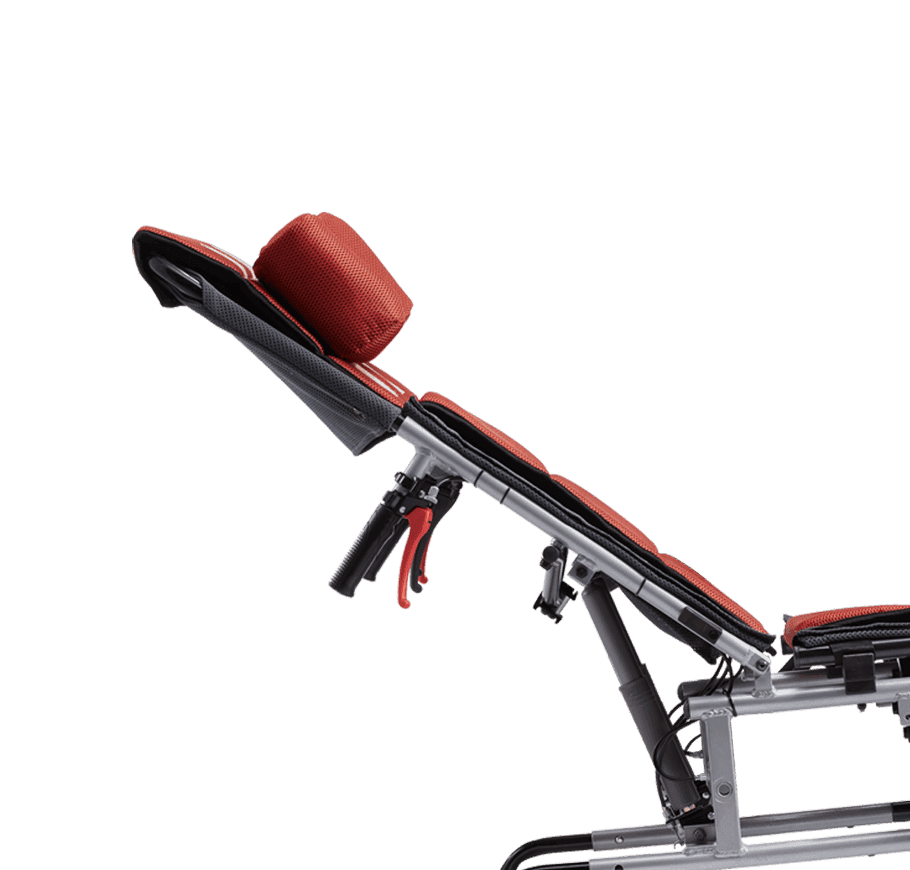

The backrest can recline smoothly from 90 to 163 degrees.

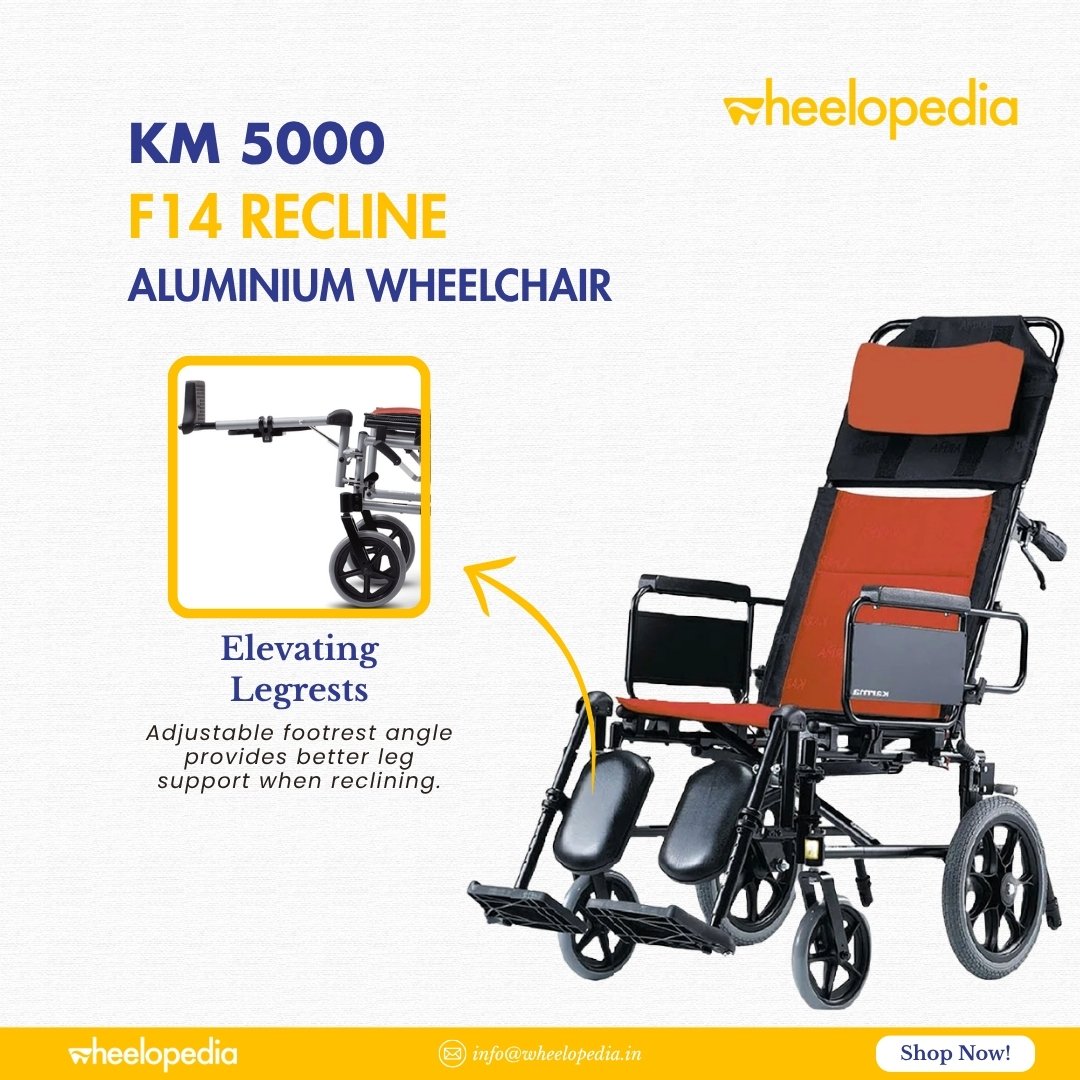

The footrest angle can be adjusted for better leg support when reclining.

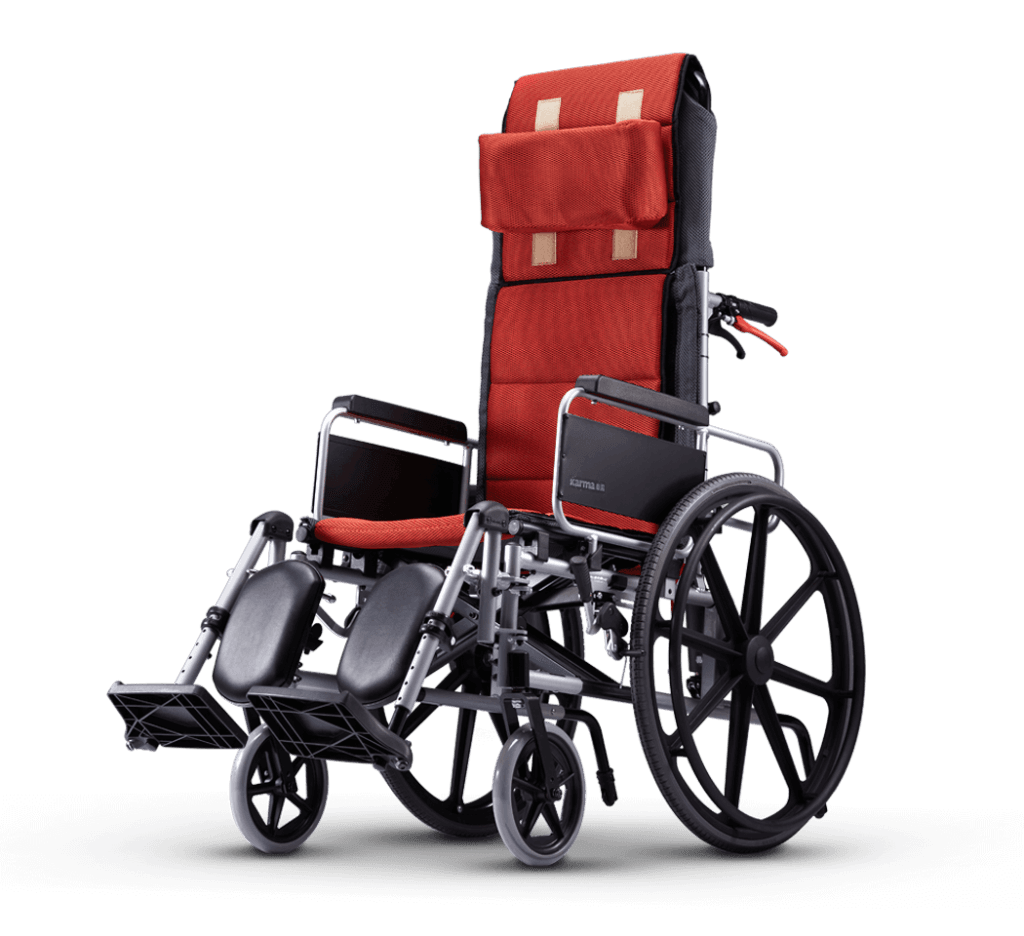

Choose between an attendant-propelled wheelchair with 14″
rear wheel or self-propelled wheelchair with a 24″ rear wheel.
| Product Mode | KM-5000 | |||

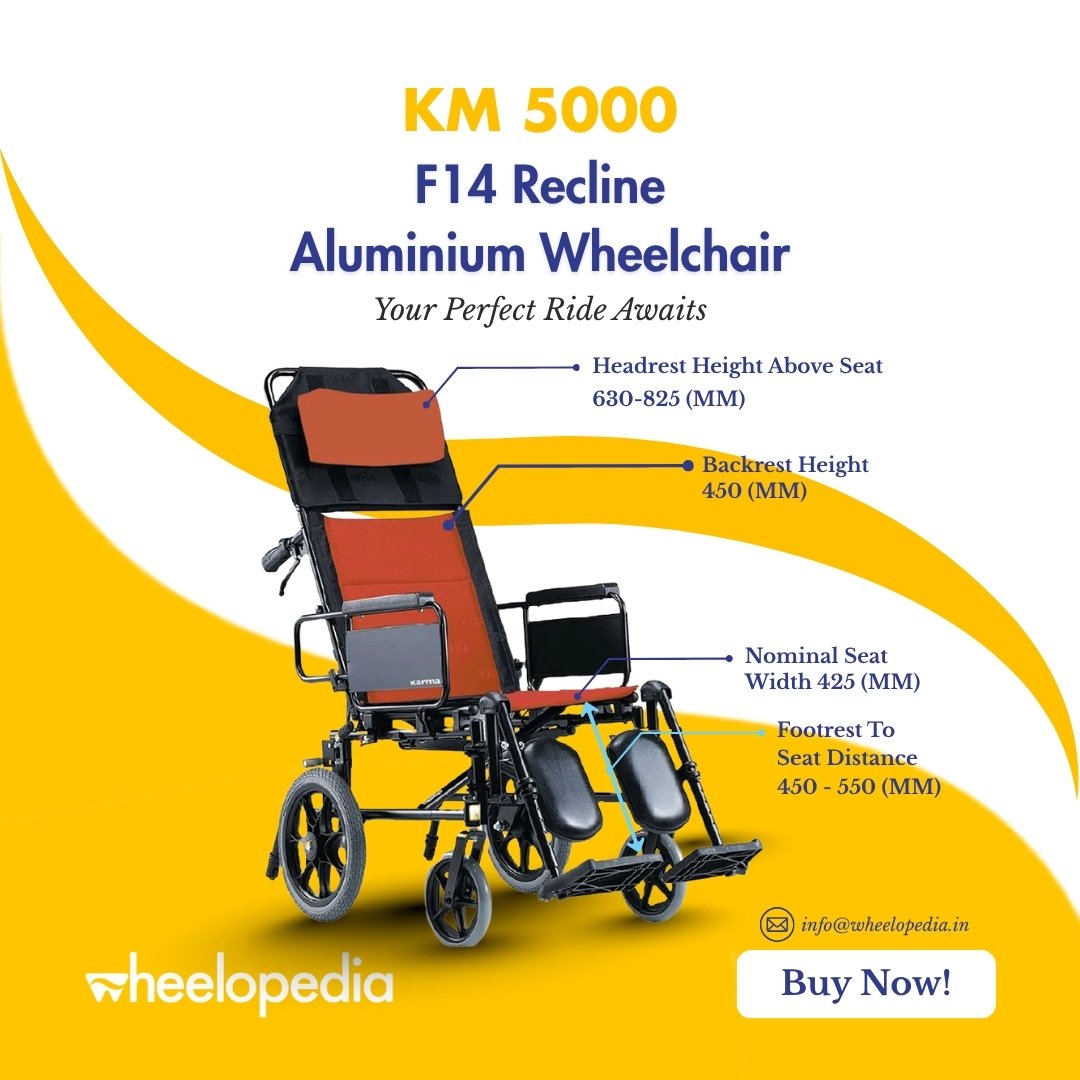

| Nominal seat width (mm/in)* | 425 / 17 | 460 / 18 | 425 / 17 | 460 / 18 |
| Nominal seat depth (mm/in)** | 420 / 17 | 470 / 18 | 420 / 17 | 470 / 18 |
| Front caster / Rear wheel size (in) | 8 / 14 | 8 / 14 | 8 / 24 | 8 / 24 |

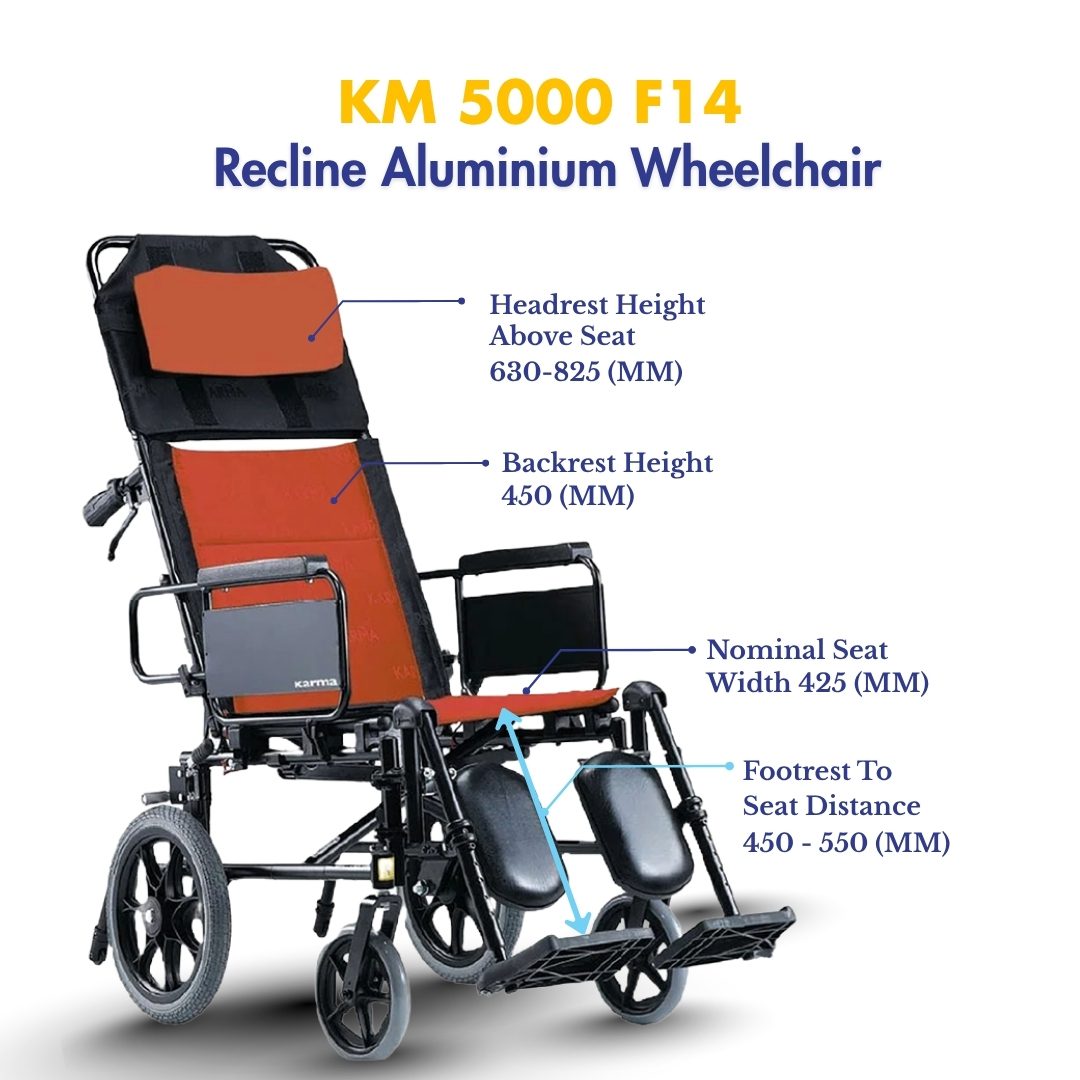

| Backrest height (mm) | 450 | 450 | 450 | 450 |
| Headrest height above seat (mm) | 630 ~ 825 | 630 ~ 825 | 650 ~ 770 | 650 ~ 770 |
| Armrest to seat distance (mm) | 235 | 235 | 230 | 230 |
| Front location of armrest structure(mm) | 400 | 400 | 380 | 380 |
| Seat surface height at front edge (mm) | 500 | 500 | 500 | 500 |
| Footrest to seat distance (mm) | 450 ~ 550 | 450 ~ 550 | 375 ~ 425 | 375 ~ 425 |
| Effective seat width (mm) | 490 | 500 | 490 | 500 |
| Effective seat depth (mm) | 430 | 520 | 430 | 520 |
| Seat plane angle (X°) | 7 | 7 | 7 | 7 |
| Backrest angle (X°) | 7 ~ 76 | 7 ~ 76 | 5 ~ 76 | 5 ~ 76 |
| Seat to backrest angle (X°) | 90 ~ 158 | 90 ~ 158 | 88 ~ 158 | 88 ~ 158 |
| Leg to seat angle (X°) | 114 ~ 180 | 114 ~ 180 | 110 ~ 177 | 110 ~ 177 |
| Overall length with legrest (mm) | 1215 | 1265 | 1240 | 1290 |
| Overall width (mm) | 660 | 660 | 660 | 660 |
| Overall height (mm) | 1295 | 1295 | 1295 | 1295 |
| Folded length (mm) | 745 | 795 | 910 | 960 |
| Folded width (mm) | 330 | 330 | 400 | 400 |
| Folded height (mm) | 935 | 935 | 930 | 930 |
| Total mass (kg) | 18.7 | 19.0 | 21.3 | 21.6 |
| Mass of the heaviest part (kg) | 13.2 | 13.5 | 15.7 | 16.0 |
| Maximum user weight (kg) | 115 | 115 | 115 | 115 |
| Minimum turning radius (mm) | 1000 | 1000 | 965 | 965 |
| Minimum turning radius without user(mm) | 925 | 925 | 925 | 925 |
| Pivot width (mm) | 1400 | 1400 | 1380 | 1380 |
| Static stability downhill (X°) | 18.8 | 18.8 | 18.8 | 18.8 |
| Static stability uphill (X°) | 13 | 13 | 13 | 13 |
| Static stability sideways (X°) | 12 | 12 | 12 | 12 |
| Handrim diameter (mm) | N/A | N/A | 530 | 530 |
| Horizontal location of axle (mm) | 50 | 50 | 70 | 70 |

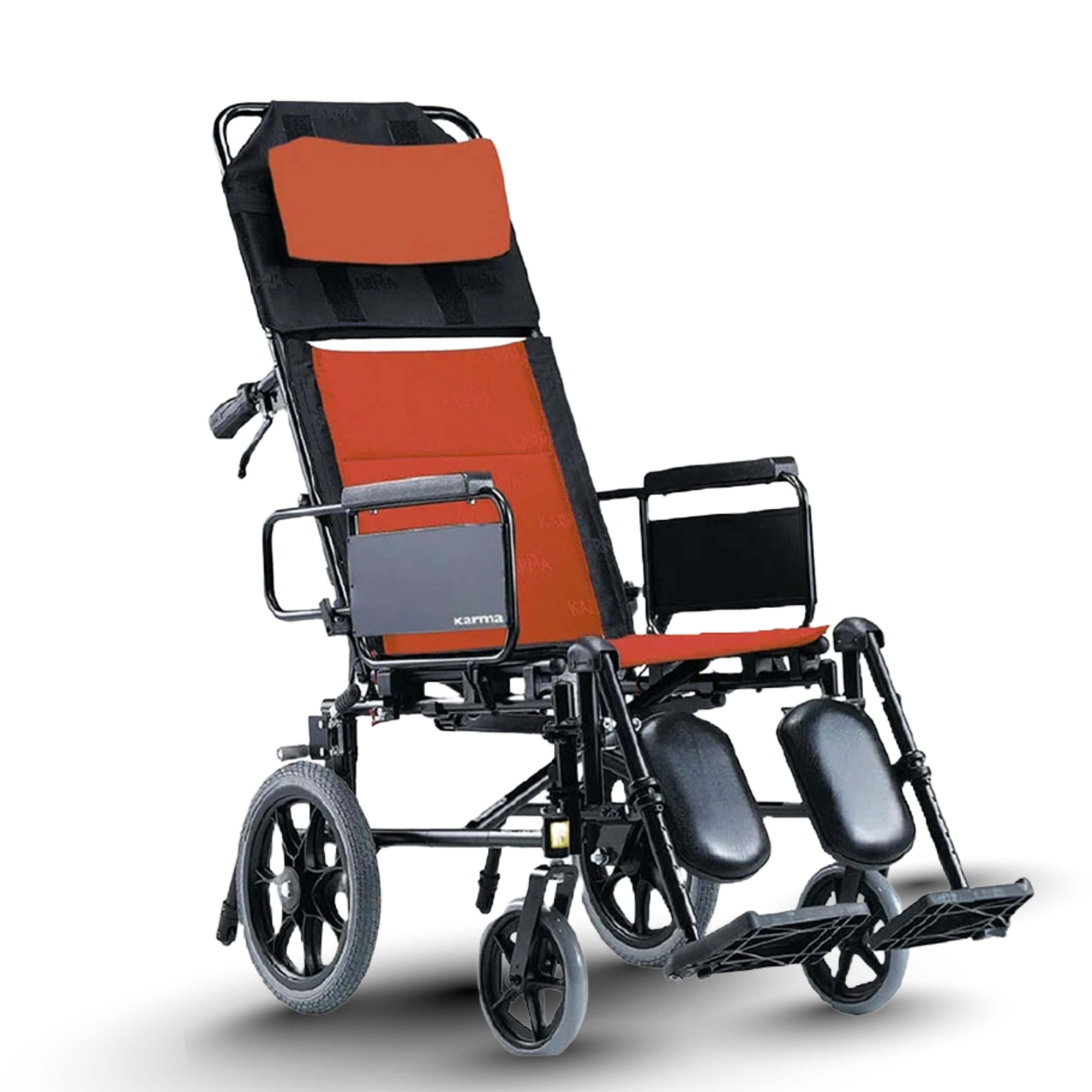

KM 5000 F14 Aluminium Recline With Headrest Manual Wheelchair
