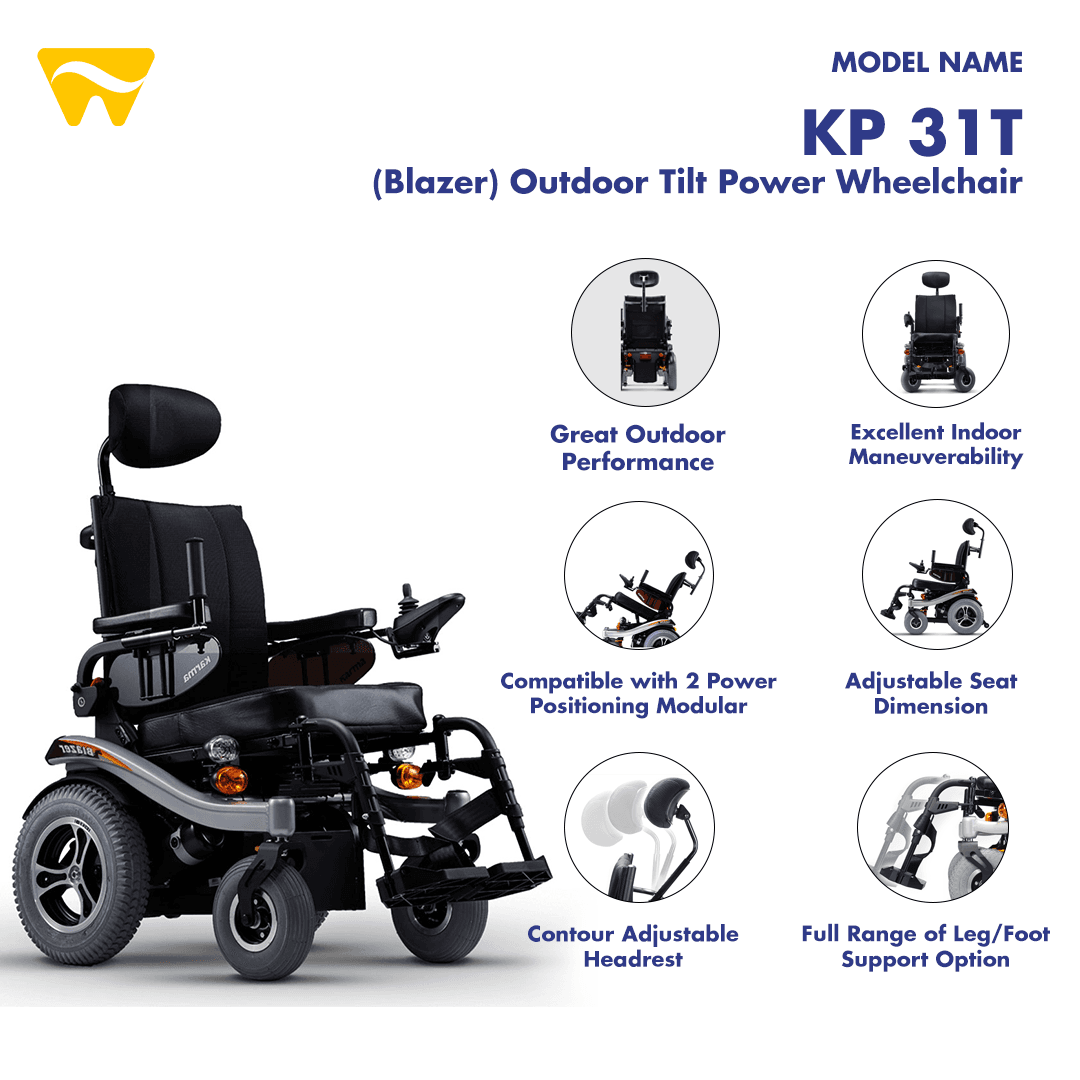

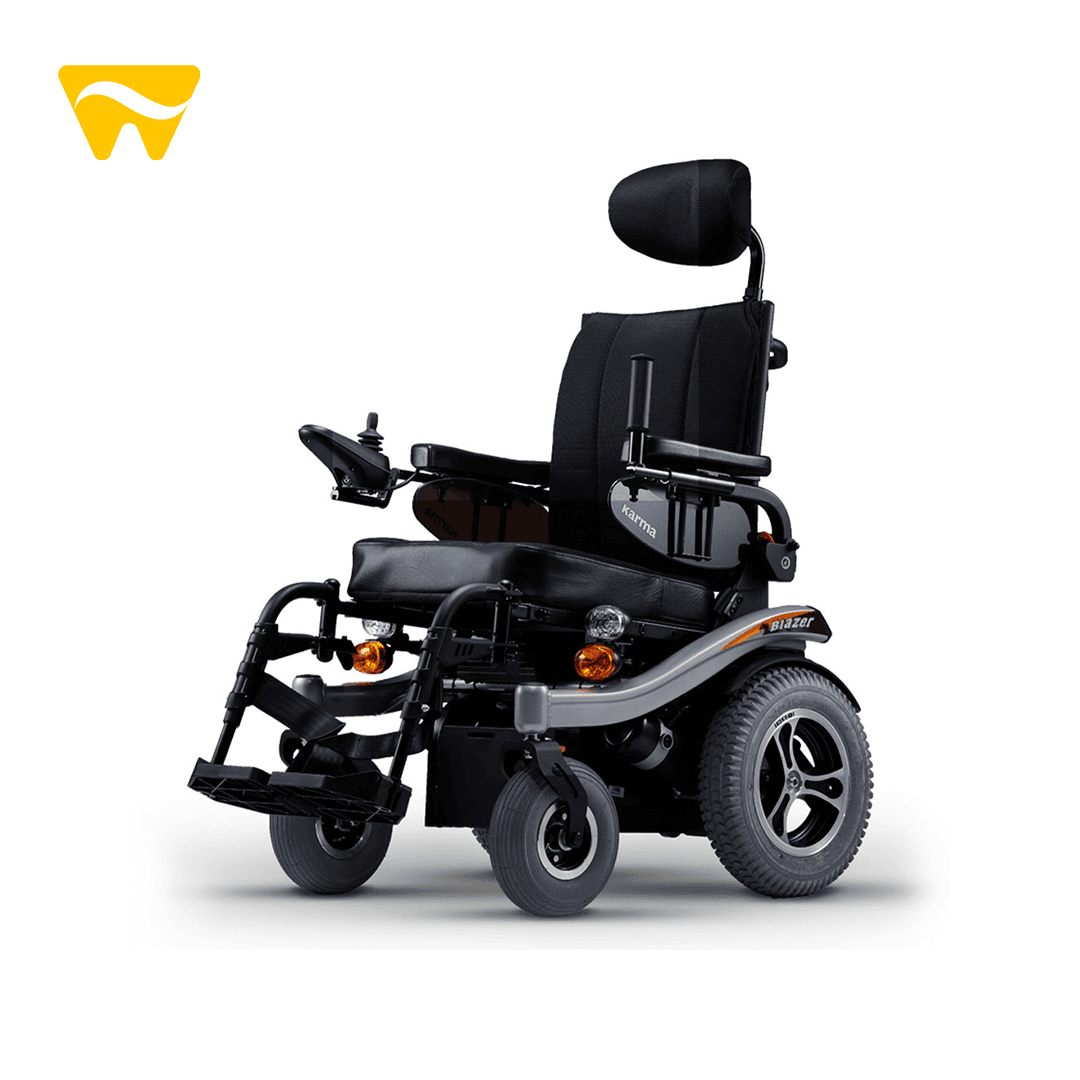

KP 31T(Blazer) Outdoor Tilt Power Wheelchair

Name: KP 31T(Blazer) Outdoor Tilt Power Wheelchair
SKU: 8516
Availability: InStock

Original price was: ₹599,000.00.Current price is: ₹365,000.00.

-39%

The Blazer is an indoor/ outdoor use, rear wheel drive power base. The exceptionally narrow wheelbase allows agile manoeuvrability. The Blazer Sling seat (KP-31/ KP-31T) offers great adjustability and the power positioning modules, which makes the chair ideal for the rental program and individual use.

Additional Information

Great Outdoor Performance

2-wheel suspension to offer extra comfort. Strong motors to overcome rough terrain

Excellent Indoor Maneuverability

The Blazer’s total width is only 60 cm, making it one of the most compact power chairs on the market. It is smooth and easy to navigate the chair through doorways, into lifts, or move around in confined spaces.

Compatible with 2 Power Positioning Modular

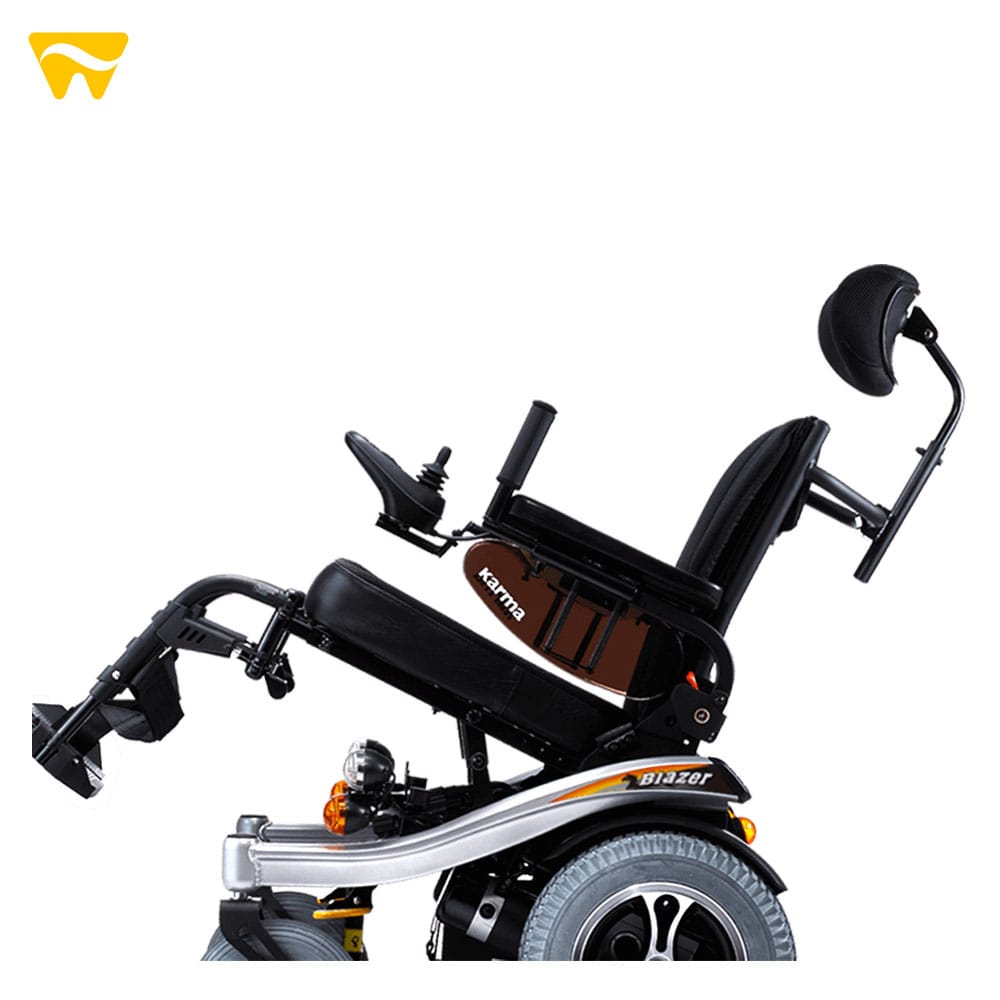

The KP-31T provides 4 to 25 degree power tilt, which allows the users to change their position, thus shifting the pressure away from the hipbone and redistributing it over a larger surface area. This feature helps reduce the risks of developing pressure ulcer and avoid back pain.

Adjustable Seat Dimension

The Blazer sling seat offers various adjustability. The seat depth can be adjusted from 41 to 46 cm. The back angle can be configurated from -1 to 14 degree.

Contour Adjustable Headrest

The height and angle of the headrest are both adjustable. The headrest is curved ergonomically according to the shape of the neck.

Full Range of Leg/Foot Support Option

Elevating Legrest extends in length as it is elevated to provide optimal comfort and support.

Amputee footrest is height, angl, and depth adjustable for the perfect support.

90-degree Legrest & Adjustable Footplate – The footplate can be set to multiple different positions and angles.

Angle Adjustable Footplate – Footplate angle ranges from 70 degrees to 110 degrees.

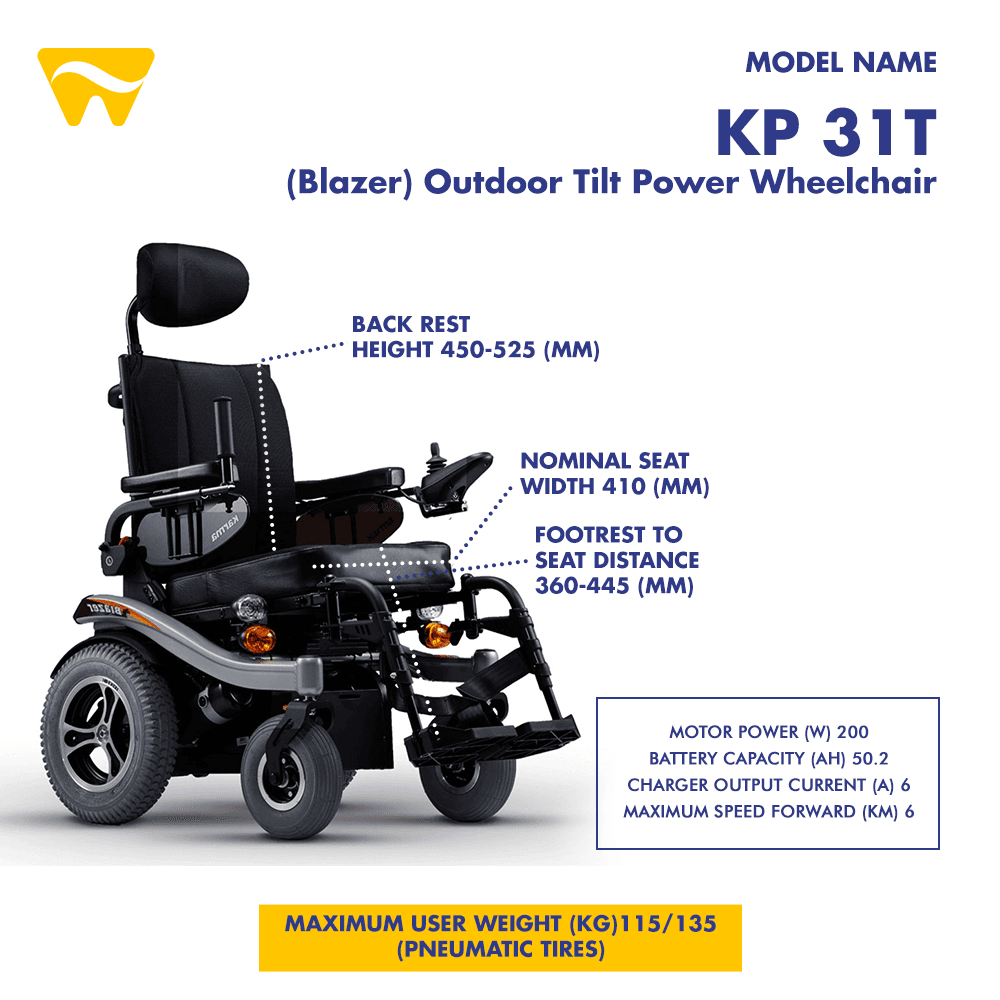

Specifications

Product Model	KP-20 Series
Nominal seat width(mm/in)*	410 / 16	460 / 18	515 / 20
Nominal seat depth (mm/in)**	430 / 16	480 / 18	480 / 18
Front caster / Drive wheel size (in)	8 / 12	8 / 12	8 / 12
Backrest height (mm)	450 ~ 525	450 ~ 525	450 ~ 525
Headrest height above seat (mm)	N/A	N/A	N/A
Armrest to seat distance (mm)	225 ~ 285	225 ~ 285	225 ~ 285
Front location of armrest structure (mm)	245 ~ 500	245 ~ 500	245 ~ 500
Seat surface height at front edge(mm)	525	525	525
Footrest to seat distance (mm)	360 ~ 445	350 ~ 435	350 ~ 435
Effective seat width (mm)	430	480	530
Effective seat depth (mm)	470	515	515
Seat plane angle (X°)	6	6	6
Backrest angle (X°)	11	11	11
Seat to backrest angle (X°)	95	95	95
Leg to seat angle (X°)	110	110	110
Overall length with legrest (mm)	985 ~ 1115	985 ~ 1115	985 ~ 1115
Overall width (mm)	590	640	690
Overall height (mm)	960 ~ 1035	960 ~ 1035	960 ~ 1035
Folded length (mm)	755	755	755
Folded width (mm)	380	395	395
Folded height (mm)	910	910	910
Total mass (kg)	67.0	67.6	67.6
Total mass without batteries (kg)	35.7	36.3	36.3
Mass of the heaviest part (kg)	30.0	30.6	30.6
Maximum user weight (kg)	115 / 135 (pneumatic tires)
Motor power (W)	200	200	200
Battery capacity (Ah)	50*2	50*2	50*2
Charger output current(A)	6	6	6
Drive range (km) ***	32	32	32
Battery Compartment (L x W x H)(mm)	220 x 170 x 175 (Single Compartment)
Maximum speed forward (km)	6	6	6
Minimum braking distance frommax speed (mm)	1000	1000	1000
Obstacle climbing (mm)	50	50	50
Ground clearance (mm)	60	60	60
Minimum turning radius (mm)	780	955	1130
Minimum turning radius withoutuser (mm)	650	825	1000
Reversing width (mm)	1180	1220	1260
Static stability downhill(X°)	16	16	16
Static stability uphill(X°)	14	14	14
Static stability sideways(X°)	16	16	16
Dynamic stability uphill(X°)	6	6	6
Ability to climb rated slope (X°)	12	12	12
