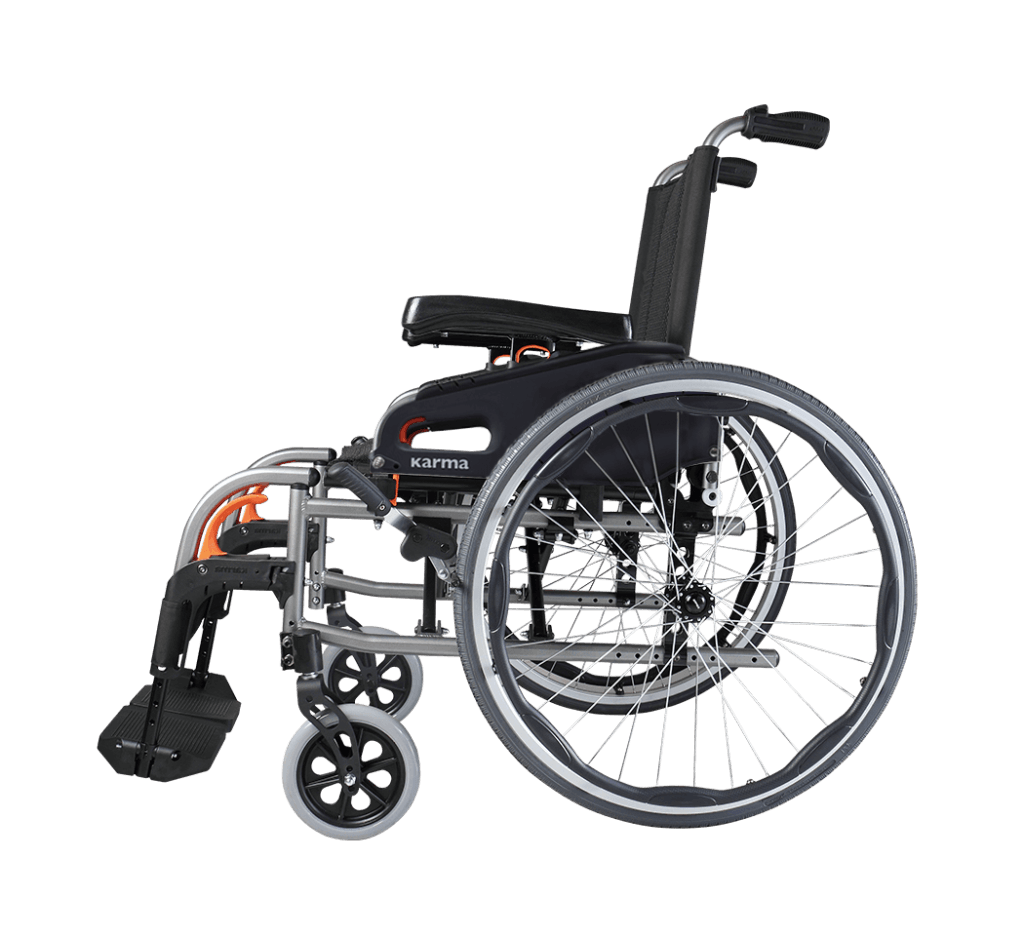

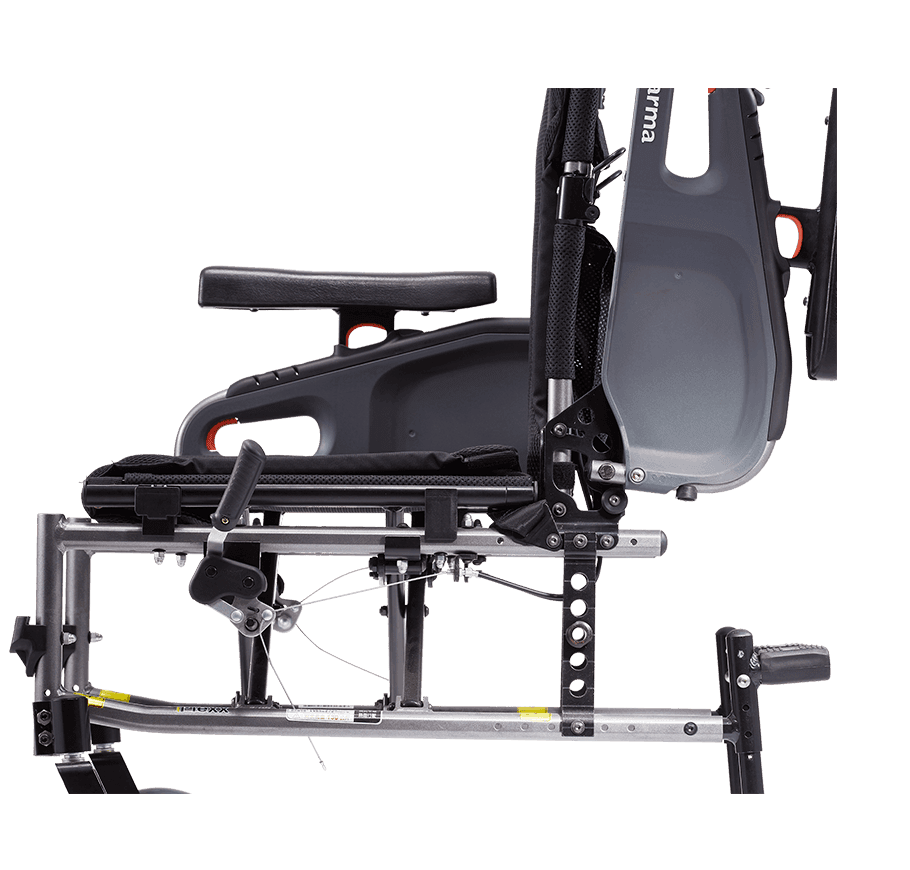

The Flexx Series (KM-8022 / KM-8522) is all about comfort, support, and performance. If you are an active user looking for an ideal custom-made wheelchair, explore the many options that the Flexx Series has to offer and find the right combination to match you and your needs.

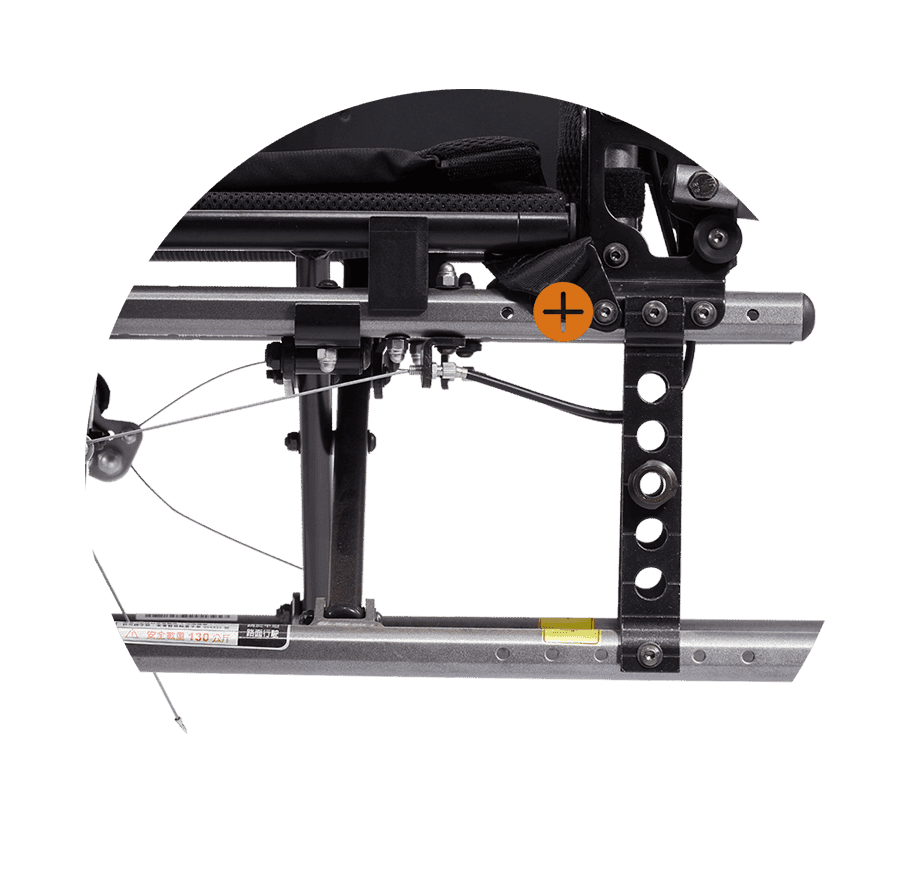

The Flexx Series is equipped with many adjustable features like rear wheel axle position, backrest angle, backrest height, and seat depth, just to name a few. With the elliptical-frame design, the Flexx wheelchair is not only stylish but also robust and durable.
Specifications
| Product Model | Flexx (KM-8022、KM-8522) | ||||||
| Nominal seat width (mm/in)* | 350 / 14 | 375 / 15 | 400 / 16 | 425 / 17 | 450 / 18 | 475 / 19 | 500 / 20 |
| Nominal seat depth (mm/in)** | 410 ~ 460 / 16 ~ 18 | ||||||
| Front caster / Rear wheel size (in) | 7 / 24 、 8 / 24 | ||||||
| Backrest height (mm) | 430 | 430 | 430 | 430 | 430 | 430 | 430 |
| Headrest height above seat (mm) | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Armrest to seat distance (mm) | 200 ~ 280 | ||||||
| Front location of armrest structure(mm) | 355 | 355 | 355 | 355 | 355 | 355 | 355 |
| Seat surface height at front edge (mm) | 390 ~ 530 | ||||||
| Footrest to seat distance (mm) | 330 ~ 430 | ||||||
| Effective seat width (mm) | 380 | 405 | 430 | 455 | 480 | 505 | 530 |
| Effective seat depth (mm) | 570 ~ 620 | ||||||
| Seat plane angle (X°) | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Backrest angle (X°) | 7 ~ 27 | ||||||
| Seat to backrest angle (X°) | 92 ~ 112 | ||||||
| Leg to seat angle (X°) | 99 | 99 | 99 | 99 | 99 | 99 | 99 |
| Overall length with legrest (mm) | 1030 ~ 1105 | ||||||
| Overall width (mm) | 560 | 585 | 610 | 635 | 660 | 685 | 710 |
| Overall height (mm) | 915 ~ 940 | ||||||
| Folded length (mm) | 815 ~ 865 | ||||||
| Folded width (mm) | 290 | 290 | 305 | 305 | 320 | 320 | 335 |
| Folded height (mm) | 610 ~ 740 | ||||||
| Total mass (kg) | 15.9 ~ 16.7 | ||||||
| Mass of the heaviest part (kg) | 9.8 ~ 10.9 | ||||||
| Maximum user weight (kg) | 130 | 130 | 130 | 130 | 130 | 130 | 130 |
| Minimum turning radius (mm) | 860 ~ 920 | ||||||
| Minimum turning radius withoutuser (mm) | 730 ~ 790 | ||||||
| Pivot width (mm) | 1240 ~ 1300 | ||||||
| Static stability downhill (X°) | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Static stability uphill (X°) | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| Static stability sideways (X°) | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Handrim diameter (mm) | 520 | 520 | 520 | 520 | 520 | 520 | 520 |
| Horizontal location of axle (mm) | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
